Oil Immersed Self Cooled Transformer: Reliable Power Distribution Solutions

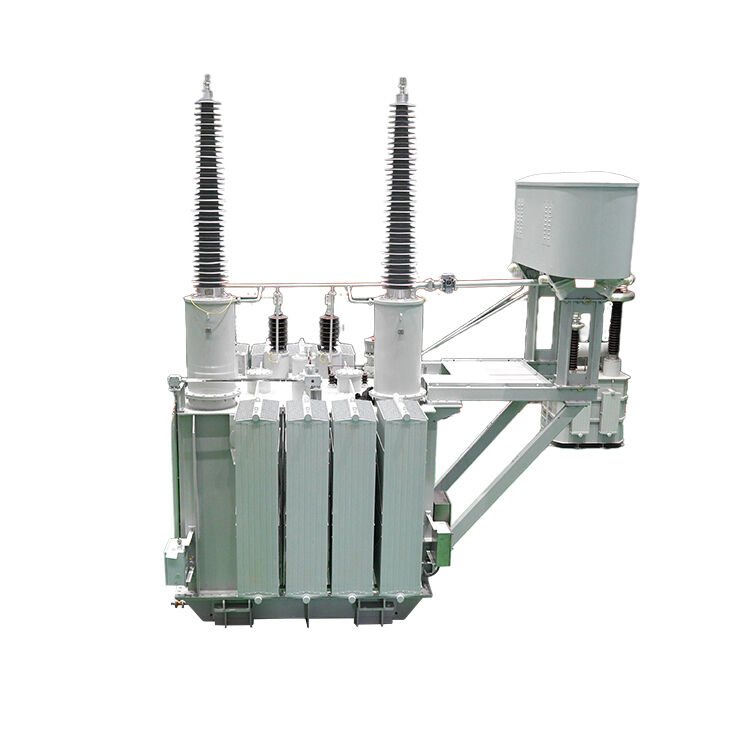

The oil immersed self cooled transformer achieves exceptional thermal management through an elegant natural circulation system that maintains optimal operating temperatures without external intervention. This sophisticated cooling mechanism relies on the fundamental principles of convection, where heated mineral oil naturally rises through the transformer windings and core, transferring thermal energy to the tank walls where it dissipates into the surrounding environment. As the oil cools, it descends back through the system, creating a continuous circulation pattern that effectively removes heat from critical components. This natural cooling process provides several distinct advantages over forced cooling alternatives. The absence of mechanical components such as pumps, fans, or heat exchangers eliminates potential failure points while reducing maintenance requirements and operating costs. The oil immersed self cooled transformer design ensures consistent cooling performance regardless of external power availability, making it ideal for mission-critical applications where reliability cannot be compromised. The mineral oil serves dual purposes as both an excellent electrical insulator and an efficient heat transfer medium. Its high dielectric strength prevents electrical failures while its superior thermal conductivity enables effective heat removal from transformer windings and core components. The oil's thermal characteristics remain stable across wide temperature ranges, ensuring consistent cooling performance under varying load conditions and environmental temperatures. The transformer tank design incorporates corrugated walls or cooling tubes that maximize surface area for heat dissipation, enhancing the natural cooling effect. This optimized geometry allows the oil immersed self cooled transformer to handle substantial power loads while maintaining safe operating temperatures, providing excellent performance margins for variable demand scenarios. The thermal management system requires minimal human intervention, as the natural circulation process automatically adjusts to changing heat loads, making it an ideal solution for remote installations or applications where frequent maintenance access is challenging.

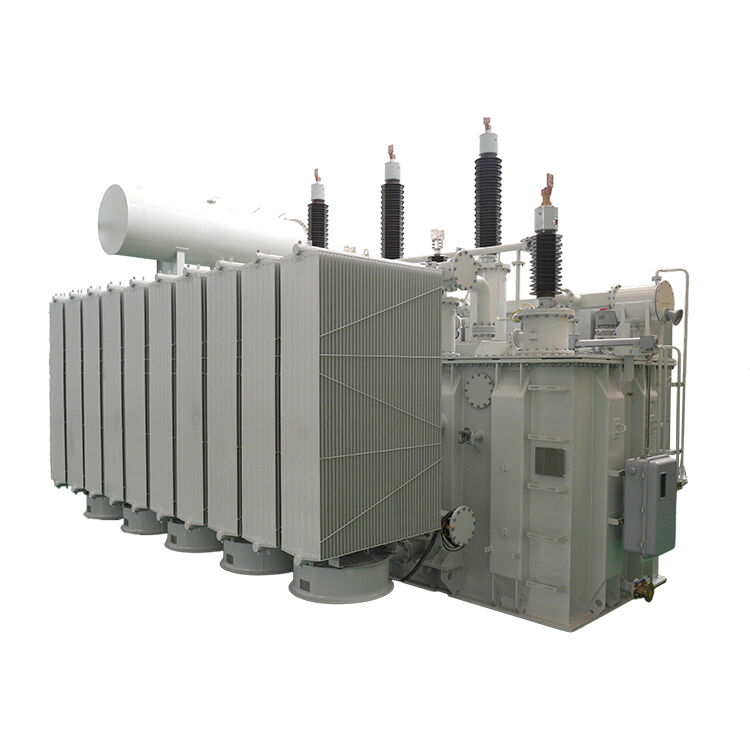

The oil immersed self cooled transformer provides superior electrical insulation characteristics that significantly enhance safety performance and operational reliability compared to alternative transformer technologies. Mineral oil possesses exceptional dielectric properties, offering breakdown strength values typically exceeding 30 kV per 2.5mm gap, which substantially surpasses the insulation capabilities of air or other gaseous mediums. This superior insulation performance allows the oil immersed self cooled transformer to operate safely at higher voltages while maintaining compact dimensions, making it particularly valuable for space-constrained installations or high-voltage applications. The oil environment completely surrounds all energized components, creating a uniform insulation medium that eliminates air pockets or voids that could lead to partial discharge or electrical failures. This comprehensive insulation coverage ensures consistent electrical performance across all operating conditions, reducing the risk of unexpected outages or equipment damage. The mineral oil also provides excellent arc-quenching properties, rapidly extinguishing any electrical arcs that might occur during switching operations or fault conditions, thereby protecting transformer components from damage. Safety benefits extend beyond electrical insulation to include fire resistance characteristics. Modern mineral oils used in the oil immersed self cooled transformer are specially formulated with high flash points and low flammability ratings, reducing fire risk compared to many alternative insulating mediums. The sealed tank design prevents oxygen infiltration, further reducing combustion potential while maintaining optimal oil quality throughout the transformer's operational lifespan. The oil immersed environment also protects internal components from environmental contamination, moisture infiltration, and corrosive atmospheric conditions that could degrade insulation performance over time. This protective barrier ensures consistent electrical characteristics and extends equipment lifespan, providing long-term value for facility operators. Advanced oil treatment systems can remove contaminants and moisture, allowing for oil regeneration and extended transformer life, making the oil immersed self cooled transformer an environmentally responsible choice for sustainable operations.

The oil immersed self cooled transformer demonstrates exceptional long-term reliability through its time-tested design principles and minimal maintenance requirements, making it the preferred choice for critical infrastructure applications worldwide. This technology has been refined over more than a century of practical application, resulting in mature engineering solutions that consistently deliver decades of trouble-free operation. The fundamental design simplicity, combined with the protective qualities of mineral oil, creates a robust system that withstands environmental challenges and operational stresses that might compromise alternative transformer technologies. The maintenance requirements for an oil immersed self cooled transformer are significantly reduced compared to complex forced-cooling systems or dry-type alternatives operating in harsh environments. Routine maintenance primarily involves periodic oil analysis to monitor dielectric strength, moisture content, and dissolved gas levels, along with visual inspections of external components such as bushings, tank integrity, and accessory equipment. These straightforward procedures can typically be performed by facility maintenance personnel without specialized equipment or extensive training, reducing ongoing operational costs and improving maintenance scheduling flexibility. The mineral oil environment provides continuous protection for transformer windings and core components, preventing oxidation, moisture damage, and contamination that could degrade electrical or mechanical properties over time. This protective effect significantly extends component lifespan compared to air-exposed alternatives, often enabling the oil immersed self cooled transformer to operate reliably for 30-40 years or more with proper maintenance. The oil also serves as a diagnostic medium, with dissolved gas analysis providing early warning of potential component degradation or operational issues, allowing for proactive maintenance planning and preventing unexpected failures. The sealed tank construction eliminates many environmental factors that contribute to transformer deterioration, including moisture infiltration, dust accumulation, and temperature cycling effects that can stress insulation systems. This environmental protection ensures consistent performance characteristics throughout the transformer's service life, maintaining efficiency levels and electrical properties that might degrade in exposed installations. When maintenance is required, the oil immersed self cooled transformer design allows for in-service oil treatment and component replacement without complete system shutdown, minimizing operational disruption and maintenance costs.
