The transformer oil immersed type represents a fundamental design approach in electrical power distribution systems, where the core and windings are completely submerged in specially formulated insulating oil. This configuration serves multiple critical purposes in transformer operation, making it one of the most widely adopted designs across residential, commercial, and industrial applications. The transformer oil immersed type functions primarily as an electrical insulation medium, preventing dangerous arcing between windings and providing a barrier against moisture ingress that could compromise performance. The insulating oil also acts as an efficient heat transfer medium, absorbing thermal energy generated during operation and circulating it throughout the tank to maintain optimal operating temperatures. Modern transformer oil immersed type units incorporate advanced cooling systems that may include radiators, fans, or pumps to enhance heat dissipation capabilities. The technological features of this design include sealed tank construction that prevents contamination, specialized bushings that allow safe electrical connections, and conservator tanks that accommodate oil expansion during temperature variations. Additionally, these transformers often feature protective devices such as pressure relief valves, temperature monitors, and oil level indicators to ensure safe operation. The applications for transformer oil immersed type units span across utility companies, manufacturing facilities, hospitals, schools, and residential complexes where reliable power distribution is essential. Their versatility allows for both step-up and step-down voltage conversion, making them suitable for everything from neighborhood distribution to industrial process applications. The robust construction and proven reliability of the transformer oil immersed type have made it the preferred choice for outdoor installations where weather resistance and long-term durability are paramount considerations for electrical infrastructure investments.

The transformer oil immersed type offers numerous practical benefits that make it an excellent choice for customers seeking reliable and cost-effective power distribution solutions. First and foremost, these transformers provide superior cooling performance compared to dry-type alternatives. The oil circulation naturally removes heat from the windings and core, allowing for higher power ratings in smaller physical packages. This cooling efficiency translates directly into better performance and longer equipment lifespan, reducing replacement costs over time. The transformer oil immersed type also delivers exceptional electrical insulation properties that significantly reduce the risk of electrical faults and power outages. The oil creates a protective barrier that prevents moisture absorption, which is a leading cause of transformer failure in outdoor environments. This moisture protection ensures consistent performance across varying weather conditions, from humid summers to freezing winters. Another major advantage lies in the cost-effectiveness of this design. Manufacturing costs for transformer oil immersed type units are typically lower than equivalent dry-type models, making them more accessible for budget-conscious projects without compromising quality or performance. The maintenance requirements are also straightforward and predictable, with regular oil testing and periodic replacement being the primary service needs. Safety features inherent in the transformer oil immersed type design include natural fire-retardant properties of the insulating oil and robust containment systems that prevent environmental contamination. Modern units incorporate advanced monitoring systems that provide early warning of potential issues, allowing for proactive maintenance scheduling that minimizes unexpected downtime. The operational flexibility of these transformers accommodates various load profiles and environmental conditions, making them suitable for applications ranging from steady industrial loads to fluctuating residential demands. Their proven track record in utility applications demonstrates reliability that spans decades of service life. Additionally, the transformer oil immersed type design allows for easy inspection and maintenance access through removable covers and drain valves, reducing service time and associated labor costs. The combination of performance, reliability, cost-effectiveness, and proven technology makes the transformer oil immersed type an ideal solution for customers prioritizing long-term value and dependable electrical infrastructure.

Tips And Tricks

Jan

How Does a Transformer Work in High Voltage Power Transmission?

High voltage power transmission systems form the backbone of modern electrical grids, enabling electricity to travel efficiently across vast distances. At the heart of these complex networks lies the power transformer, a crucial piece of equipment th...

Jan

Why Are Transformers Critical for Industrial Power Distribution Systems?

Industrial power distribution systems form the backbone of modern manufacturing, commercial facilities, and critical infrastructure operations. At the heart of these complex networks lies a fundamental component that ensures safe, efficient, and reli...

Jan

How Do Transformers Support Grid Stability in Large-Scale Power Networks?

Large-scale power networks form the backbone of modern electrical infrastructure, requiring sophisticated equipment to maintain stability and reliability across vast geographical areas. Power transformers play a crucial role in these complex systems ...

Jan

What Should Utilities Consider When Selecting a Transformer Supplier?

Selecting the right supplier for power infrastructure represents one of the most critical decisions utility companies face in today's rapidly evolving energy landscape. The process of choosing a power transformer supplier requires careful evaluation ...

Get a Free Quote

Our representative will contact you soon.

WhatsApp/Mobile

Name

Company Name

Message

0/1000

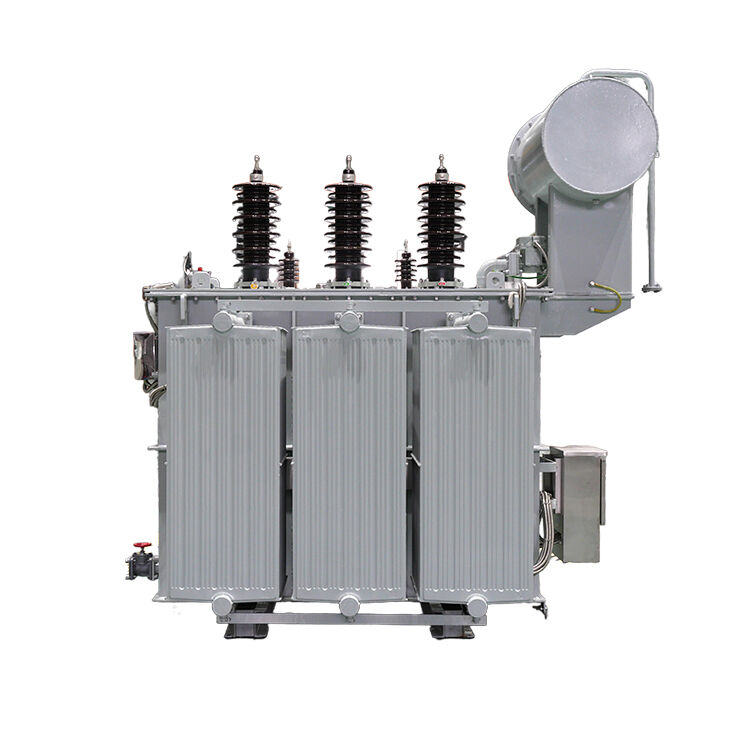

Superior Heat Management and Thermal Performance

The transformer oil immersed type excels in thermal management through its innovative use of insulating oil as both a cooling and insulation medium. This design principle represents decades of engineering refinement, where the oil serves as a highly efficient heat transfer agent that continuously circulates throughout the transformer tank. When electrical current flows through the windings, it naturally generates heat that must be dissipated to prevent damage and maintain optimal performance. The transformer oil immersed type addresses this challenge by surrounding all internal components with specially formulated mineral oil that has excellent thermal conductivity properties. As the oil absorbs heat from the windings and core, natural convection currents develop, creating a continuous circulation pattern that moves heated oil toward cooling surfaces such as tank walls and external radiators. This natural cooling process is further enhanced in larger transformer oil immersed type units through the addition of external cooling systems including radiators, fans, and oil pumps that accelerate heat dissipation. The result is a transformer that can handle significantly higher power loads while maintaining safe operating temperatures, which directly translates to improved efficiency and extended equipment lifespan. Modern transformer oil immersed type designs incorporate sophisticated temperature monitoring systems that continuously track oil temperature at multiple points, ensuring optimal thermal management under all operating conditions. This superior heat management capability allows for more compact transformer designs that deliver higher power ratings compared to air-cooled alternatives, providing customers with space-saving solutions that do not compromise on performance. The thermal stability offered by the transformer oil immersed type design also means more consistent electrical characteristics across varying ambient temperatures, ensuring reliable power delivery regardless of seasonal weather changes or daily temperature fluctuations.

Enhanced Electrical Insulation and Fault Protection

The transformer oil immersed type provides unmatched electrical insulation performance through its comprehensive oil-based protection system that safeguards against electrical faults and environmental hazards. The insulating oil used in these transformers possesses exceptional dielectric strength, meaning it can withstand high electrical stresses without breaking down or conducting electricity. This characteristic is crucial for preventing dangerous electrical arcing between windings or from windings to the grounded tank structure. The transformer oil immersed type design ensures that all live electrical components are completely surrounded by this insulating medium, creating multiple layers of protection against electrical failure. Beyond basic insulation, the oil serves as a moisture barrier that prevents water ingress, which is one of the primary causes of transformer insulation degradation. Water contamination can drastically reduce the dielectric strength of insulation materials, leading to premature failure and costly replacements. The sealed design of the transformer oil immersed type, combined with breathing systems that include desiccant filters, maintains oil purity and prevents moisture absorption from atmospheric humidity. Advanced transformer oil immersed type units incorporate online monitoring systems that continuously assess oil quality parameters including moisture content, dissolved gas concentrations, and dielectric strength. These monitoring capabilities enable predictive maintenance strategies that identify potential issues before they develop into serious problems, maximizing equipment reliability and minimizing unexpected outages. The self-healing properties of transformer oil also contribute to fault protection, as minor electrical discharges that might occur during transient conditions are absorbed by the oil without causing permanent damage to solid insulation materials. This resilience makes the transformer oil immersed type particularly suitable for applications with frequent load variations or exposure to electrical disturbances, providing customers with robust protection against both internal and external electrical stresses that could compromise system reliability.

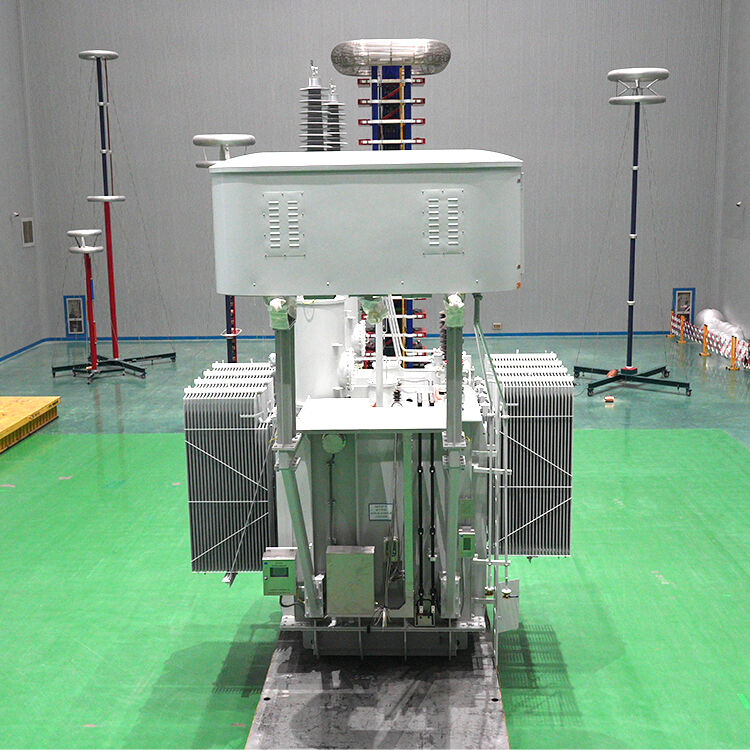

Cost-Effective Long-Term Investment with Proven Reliability
