High Voltage Transformer Coil: Advanced Electrical Solutions for Power Systems

high voltage transformer coil

A high voltage transformer coil represents a critical component in electrical power systems, designed specifically to handle and manipulate high-voltage electricity safely and efficiently. This essential device functions as the primary mechanism for stepping up or stepping down electrical voltage levels, enabling the transmission and distribution of electrical power across vast distances and various applications. The high voltage transformer coil consists of carefully wound copper or aluminum conductors arranged around a magnetic core, typically made from laminated steel sheets that minimize energy losses through eddy currents and hysteresis. The construction involves primary and secondary windings, where the primary coil receives input voltage while the secondary coil delivers the transformed output voltage according to the turns ratio between the two windings. Modern high voltage transformer coils incorporate advanced insulation systems using materials like oil, gas, or solid dielectrics to prevent electrical breakdown and ensure reliable operation under extreme voltage conditions. These coils demonstrate exceptional electromagnetic efficiency through precise engineering that optimizes magnetic flux coupling between windings. The technological features include sophisticated cooling systems that manage heat generation during operation, protective relays that monitor electrical parameters, and bushings that provide secure connections while maintaining electrical isolation. Temperature monitoring systems continuously track thermal conditions to prevent overheating and extend operational lifespan. The high voltage transformer coil applications span across electrical power generation facilities, transmission substations, distribution networks, industrial manufacturing plants, and specialized equipment requiring voltage conversion. These devices prove indispensable in renewable energy systems, connecting solar farms and wind turbines to electrical grids, while also supporting railway electrification systems and large-scale manufacturing operations. The versatility of high voltage transformer coils enables their integration into diverse electrical infrastructure projects, from urban power distribution to remote industrial installations.

High voltage transformer coils deliver exceptional performance benefits that significantly enhance electrical system reliability and operational efficiency. These devices provide superior voltage regulation capabilities, ensuring consistent power delivery regardless of load fluctuations or input variations. The robust construction of high voltage transformer coils guarantees extended service life, typically spanning several decades with proper maintenance, making them cost-effective investments for long-term electrical infrastructure projects. Energy efficiency represents another major advantage, as modern high voltage transformer coils achieve efficiency ratings exceeding 98 percent, minimizing power losses during voltage transformation processes and reducing operational costs substantially. The advanced insulation systems protect against electrical failures while enabling safe operation in harsh environmental conditions, including extreme temperatures, humidity, and contamination exposure. High voltage transformer coils demonstrate remarkable load handling capacity, supporting both continuous operation and temporary overload conditions without performance degradation. The modular design facilitates easy installation and maintenance procedures, reducing downtime and associated costs during routine servicing or emergency repairs. Thermal management systems effectively dissipate heat generated during operation, preventing component degradation and ensuring stable performance under varying load conditions. The electromagnetic compatibility features minimize interference with nearby electronic equipment, making high voltage transformer coils suitable for installation in sensitive environments. Environmental sustainability benefits include recyclable materials and eco-friendly insulation fluids that reduce environmental impact throughout the product lifecycle. Safety features incorporate multiple protection layers, including fault detection systems, emergency shutdown mechanisms, and fire-resistant materials that protect personnel and surrounding equipment. The compact design optimizes space utilization while maintaining full functionality, particularly valuable in urban installations where space constraints exist. High voltage transformer coils support smart grid integration through digital monitoring capabilities that enable remote diagnostics and predictive maintenance strategies. Cost optimization occurs through reduced maintenance requirements, extended replacement intervals, and improved energy efficiency that delivers measurable savings over the operational lifetime. The reliable performance characteristics ensure uninterrupted power supply for critical applications, supporting business continuity and operational productivity across various industries.

Tips And Tricks

Jan

What Is a Transformer and How Does It Improve Power System Efficiency?

A transformer represents one of the most critical components in modern electrical power systems, serving as the backbone for efficient energy transmission and distribution across vast networks. These electromagnetic devices enable the seamless conver...

Jan

Why Are Transformers Critical for Industrial Power Distribution Systems?

Industrial power distribution systems form the backbone of modern manufacturing, commercial facilities, and critical infrastructure operations. At the heart of these complex networks lies a fundamental component that ensures safe, efficient, and reli...

Jan

How Do Transformers Support Grid Stability in Large-Scale Power Networks?

Large-scale power networks form the backbone of modern electrical infrastructure, requiring sophisticated equipment to maintain stability and reliability across vast geographical areas. Power transformers play a crucial role in these complex systems ...

Jan

What Should Utilities Consider When Selecting a Transformer Supplier?

Selecting the right supplier for power infrastructure represents one of the most critical decisions utility companies face in today's rapidly evolving energy landscape. The process of choosing a power transformer supplier requires careful evaluation ...

Get a Free Quote

Our representative will contact you soon.

WhatsApp/Mobile

Name

Company Name

Message

0/1000

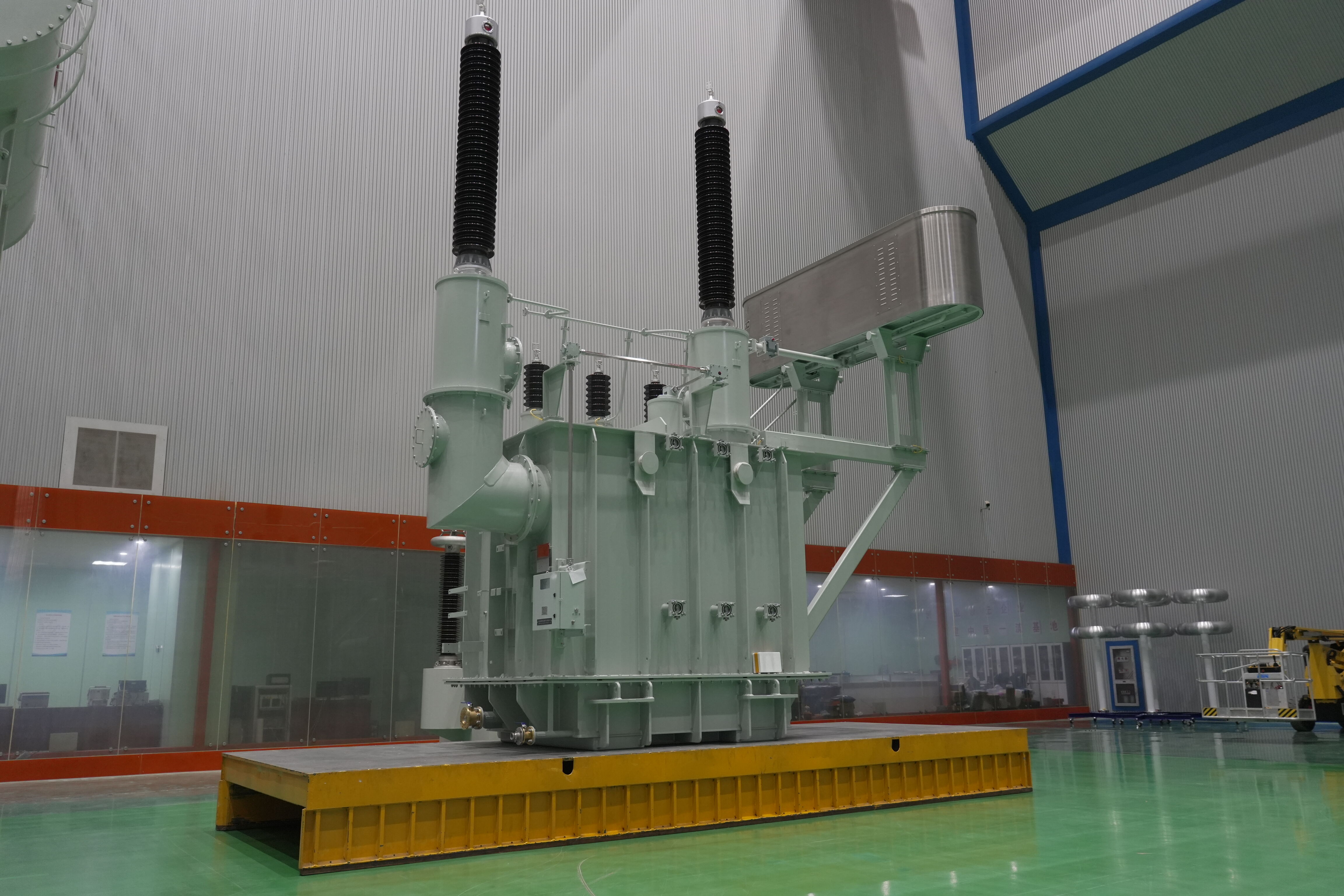

Advanced Insulation Technology for Maximum Safety

The high voltage transformer coil incorporates cutting-edge insulation technology that sets new standards for electrical safety and operational reliability. This sophisticated insulation system utilizes multiple layers of protection, combining liquid dielectrics, solid insulation materials, and gas-filled chambers to create an impenetrable barrier against electrical breakdown. The liquid insulation, typically high-grade mineral oil or synthetic fluids, provides excellent dielectric strength while offering superior cooling properties that maintain optimal operating temperatures. These specially formulated insulation fluids undergo rigorous testing to ensure they meet strict electrical and environmental standards, providing long-term stability and performance consistency. The solid insulation components include pressboard, crepe paper, and polymer materials strategically positioned throughout the high voltage transformer coil structure to reinforce electrical isolation between windings and grounded components. Advanced manufacturing techniques ensure precise placement of these insulation layers, eliminating air gaps and potential weak points that could compromise electrical integrity. The gas insulation systems, often utilizing sulfur hexafluoride or nitrogen, provide additional protection in critical areas where maximum dielectric strength is required. This multi-layered approach creates redundant protection levels, ensuring that even if one insulation layer experiences stress, multiple backup systems maintain electrical safety. Temperature monitoring sensors embedded within the insulation system continuously track thermal conditions, providing early warning of potential issues before they develop into serious problems. The insulation design also incorporates moisture control mechanisms that prevent water ingress, a common cause of insulation failure in electrical equipment. Regular testing protocols verify insulation integrity through dielectric testing, partial discharge monitoring, and dissolved gas analysis, enabling predictive maintenance strategies that prevent unexpected failures. This comprehensive insulation technology extends the operational lifespan of the high voltage transformer coil while ensuring personnel safety and equipment protection throughout its service life.

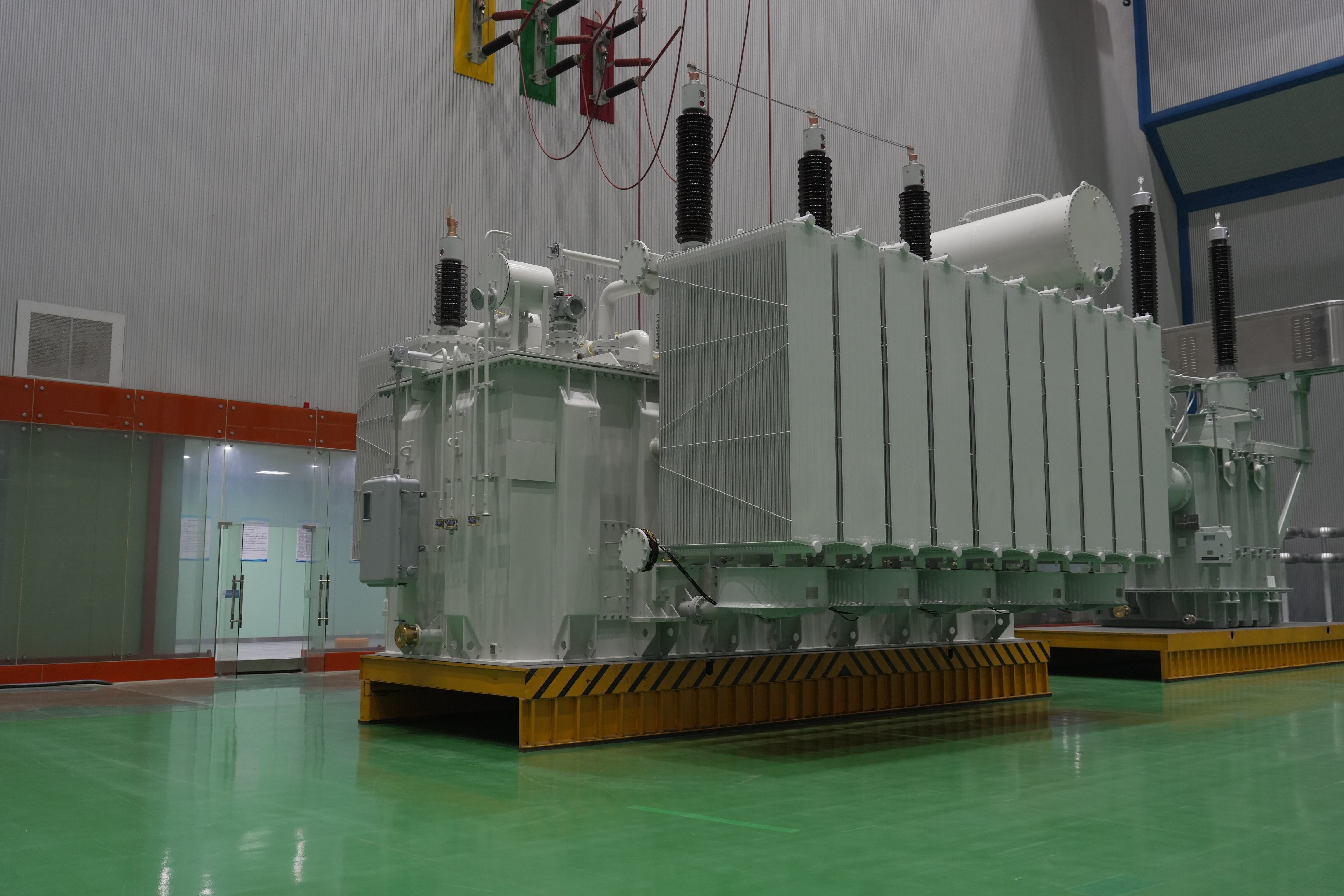

Superior Electromagnetic Efficiency and Performance

The high voltage transformer coil achieves exceptional electromagnetic efficiency through precision-engineered design elements that optimize magnetic flux coupling and minimize energy losses. The core construction utilizes high-grade grain-oriented silicon steel laminations arranged in specific patterns that direct magnetic flux along the most efficient pathways, reducing core losses and improving overall transformer efficiency. These specially processed steel laminations feature controlled grain structure that aligns with magnetic flux directions, significantly reducing hysteresis losses that occur during magnetic field reversals. The lamination thickness, typically ranging from 0.23 to 0.35 millimeters, is carefully selected to minimize eddy current losses while maintaining adequate mechanical strength for long-term operation. Advanced winding techniques ensure optimal conductor placement within the magnetic field, maximizing flux linkage between primary and secondary coils while minimizing leakage flux that contributes to efficiency losses. The high voltage transformer coil employs continuous transposed conductors that reduce circulating currents and associated I²R losses, particularly important in high-current applications. Careful attention to winding geometry and turn-to-turn spacing optimizes the electromagnetic field distribution, preventing hot spots and ensuring uniform current distribution throughout the conductor cross-section. The magnetic circuit design incorporates step-lap joint construction that eliminates air gaps at core joints, maintaining continuous magnetic flux paths and reducing no-load losses significantly. Advanced computer modeling and finite element analysis guide the electromagnetic design process, enabling engineers to optimize field patterns and predict performance characteristics before manufacturing begins. Quality control measures include comprehensive testing of magnetic properties, loss measurements, and electromagnetic field mapping to verify that each high voltage transformer coil meets strict performance specifications. The resulting electromagnetic efficiency typically exceeds 98.5 percent, representing substantial energy savings over the equipment's operational lifetime while reducing environmental impact through lower power consumption and reduced heat generation.

Robust Construction for Long-Term Reliability

The high voltage transformer coil features exceptionally robust construction engineered to withstand decades of continuous operation under demanding electrical and environmental conditions. The mechanical design incorporates high-strength materials and proven construction techniques that resist the various stresses encountered during normal operation, including electromagnetic forces, thermal cycling, and external vibrations. The winding structure utilizes specially designed clamping systems that maintain conductor position and spacing throughout the operational life, preventing movement that could cause mechanical damage or electrical faults. High-tensile strength pressing plates and tie rods distribute clamping forces evenly across the winding assembly, ensuring structural integrity even under short-circuit conditions that generate tremendous electromagnetic forces. The tank construction employs heavy-duty steel fabrication with welded seams that meet stringent pressure vessel standards, providing containment for insulation fluids and protection against environmental elements. Corrosion-resistant coatings and cathodic protection systems prevent tank deterioration, extending service life in harsh industrial environments where chemical exposure and moisture present ongoing challenges. The high voltage transformer coil incorporates sealing systems that maintain internal atmosphere integrity while accommodating thermal expansion and contraction of internal components. Advanced gasket materials and sealing technologies prevent moisture ingress and insulation fluid leakage, critical factors in maintaining electrical performance over extended periods. Vibration dampening systems reduce mechanical stress on internal components caused by electromagnetic forces and external sources, preventing fatigue failures that could compromise long-term reliability. The cooling system design includes redundant circulation pumps, multiple cooling stages, and backup systems that ensure adequate heat removal even during component maintenance or failure conditions. Comprehensive monitoring systems track multiple parameters including temperature, pressure, dissolved gases, and electrical characteristics, enabling predictive maintenance strategies that identify potential issues before they affect operational reliability. Quality assurance programs include extensive factory testing, including heat run tests, impulse tests, and mechanical shock tests that verify the high voltage transformer coil can withstand the stresses of transportation, installation, and operation while maintaining specified performance levels throughout its design life.
