Oil Filled Self Cooled Transformer: Superior Electrical Power Distribution Solutions

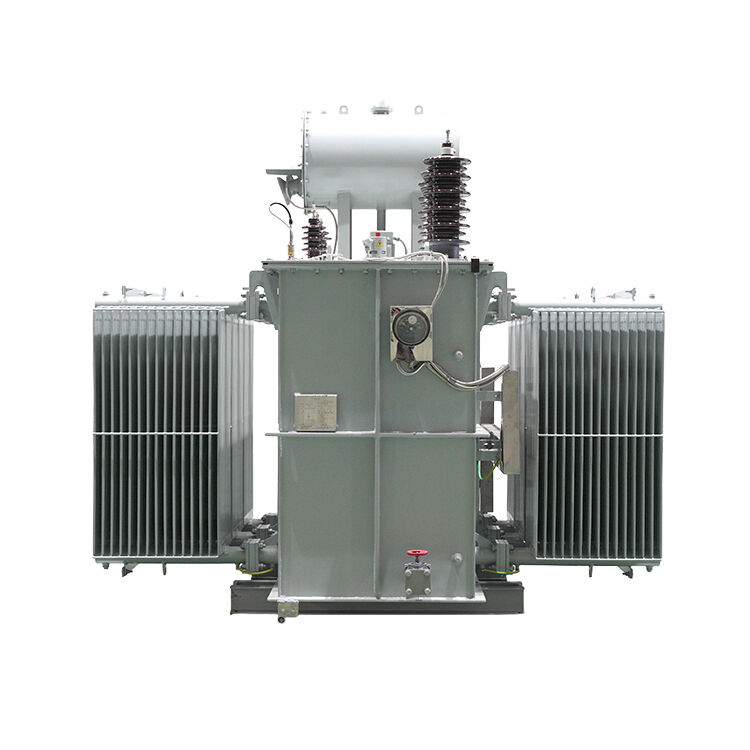

The oil filled self cooled transformer excels in thermal management through its innovative natural cooling system that ensures optimal operating temperatures without external intervention. The dielectric oil within the transformer serves as an extraordinarily efficient heat transfer medium, possessing thermal properties that far surpass air cooling capabilities. When electrical losses generate heat within the transformer windings and core, the surrounding oil absorbs this thermal energy and begins circulating through natural convection currents. Hot oil rises toward the tank's upper regions while cooler oil descends, creating a continuous circulation pattern that distributes heat evenly throughout the system. This self-regulating mechanism maintains consistent temperatures across all transformer components, preventing hotspots that could lead to insulation breakdown or premature aging. The tank walls act as effective heat exchangers, transferring thermal energy to the surrounding environment through radiation and convection. This cooling efficiency allows the oil filled self cooled transformer to handle higher power densities than comparable air-cooled units while maintaining safe operating temperatures. The thermal stability provided by oil cooling enables these transformers to withstand significant overload conditions for extended periods without sustaining damage. Temperature monitoring systems can track oil temperatures at multiple points, providing operators with real-time thermal data for optimal load management. The superior heat dissipation capability translates directly into improved transformer reliability, extended service life, and reduced maintenance requirements. Additionally, the consistent thermal environment preserves insulation properties over decades of operation, ensuring stable electrical performance throughout the transformer's operational lifetime. This thermal management advantage makes the oil filled self cooled transformer particularly valuable for applications requiring high reliability and minimal downtime, such as critical infrastructure, industrial facilities, and commercial power distribution systems where consistent performance is essential for operational continuity.

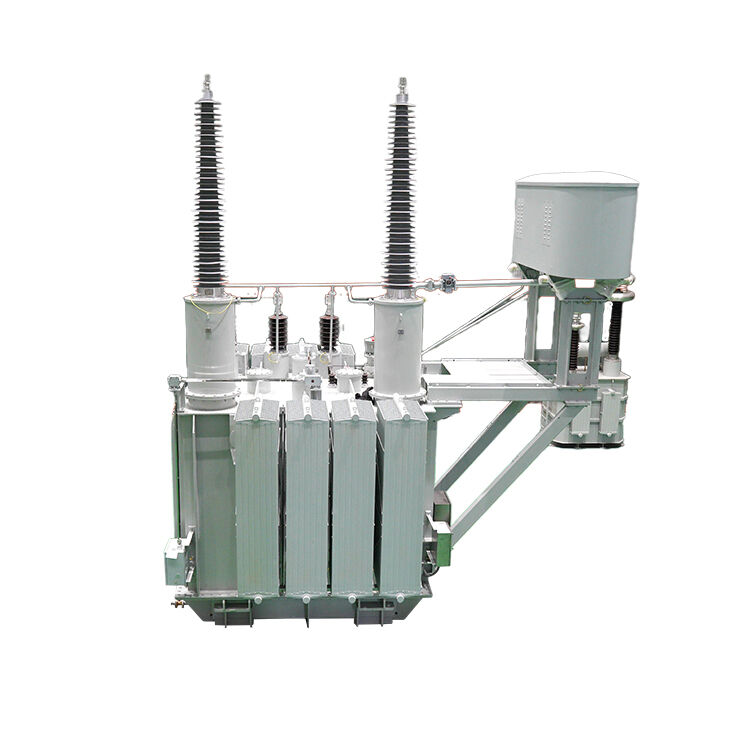

The oil filled self cooled transformer provides exceptional electrical insulation properties that significantly exceed the capabilities of air-insulated alternatives, making it ideal for high-voltage applications and demanding electrical environments. The dielectric oil creates a superior insulating medium with breakdown strengths typically five to ten times higher than air, enabling more compact designs while maintaining safe operating margins. This enhanced insulation allows closer spacing between high-voltage components, reducing overall transformer size and weight while improving electrical performance. The oil completely surrounds all energized parts, eliminating air gaps where electrical stress concentrations could occur. This comprehensive insulation coverage prevents corona discharge, reduces partial discharge activity, and minimizes the risk of flashovers between phases or to ground. The oil filled self cooled transformer design incorporates oil barriers and insulation structures that create controlled electrical fields, ensuring voltage stresses remain within safe limits across all operating conditions. The dielectric strength of transformer oil improves with proper processing and maintenance, as moisture removal and filtration enhance insulating properties over time. Arc suppression capabilities represent another critical advantage, as oil quickly extinguishes electrical arcs that may form during switching operations or fault conditions. When arcs occur in oil, the intense heat decomposes oil molecules into gases that create pressure, helping to extinguish the arc rapidly and prevent sustained arcing damage. This arc suppression characteristic protects transformer windings and connections from arc-related deterioration. The oil filled self cooled transformer also benefits from oil's ability to absorb dissolved gases produced by electrical stress or thermal aging, providing early warning indicators for potential problems through dissolved gas analysis. The insulating oil maintains its properties across wide temperature ranges, ensuring consistent electrical performance from cold startup conditions to full load operation. This electrical insulation superiority enables the oil filled self cooled transformer to operate safely in high-voltage applications, harsh environments, and critical power systems where electrical reliability is paramount for operational success.

The oil filled self cooled transformer delivers outstanding economic value through its combination of low acquisition costs, minimal maintenance requirements, and exceptional operational longevity that makes it the most cost-effective solution for many power distribution applications. Initial purchase prices typically run 20-30 percent lower than equivalent dry-type transformers, providing immediate capital savings for project budgets. The sealed oil environment protects all internal components from environmental degradation, moisture intrusion, and contamination that commonly affect air-cooled units, significantly extending service life and reducing replacement frequency. Maintenance procedures remain straightforward and infrequent, primarily involving periodic oil testing, level checks, and basic external inspections rather than complex internal servicing. The oil filled self cooled transformer requires no consumable components like filters or forced cooling equipment that need regular replacement, eliminating ongoing operational expenses. Predictive maintenance capabilities through oil analysis enable operators to monitor transformer health continuously, identifying potential issues years before they become problems and allowing planned maintenance during convenient outages rather than emergency repairs. The robust construction and protective oil environment typically ensure service lives exceeding 30 years, often reaching 40-50 years with proper care, compared to 20-25 years for many alternative technologies. Energy efficiency advantages compound cost savings over time, as lower losses translate to reduced electricity costs throughout the transformer's operational lifetime. The oil filled self cooled transformer handles overload conditions gracefully, providing emergency capacity during peak demand periods without requiring expensive oversizing. Standardized designs and widespread availability ensure competitive pricing for replacements, repairs, and spare parts throughout the equipment lifecycle. Installation costs remain moderate due to straightforward mounting requirements and proven connection methods. Environmental compatibility with proper containment systems meets regulatory requirements without expensive special measures. The proven technology reduces risks associated with newer, less-established alternatives, providing confidence in long-term availability of service support and replacement parts. This economic advantage makes the oil filled self cooled transformer particularly attractive for utilities, industrial facilities, and commercial developments where lifecycle costs significantly impact project economics and operational budgets over extended periods.
